Fire Protection

OCV S100 68 Series

Reliable, Durable Control Valve for Easy Operation

OCV S100 68 globe valve series is a trusted solution for fire protection systems, known for its reliability, versatility, and durability. Its simple yet efficient design allows for high-flow capacity with very low head losses; ensuring a rapid and precise response in critical fire-suppression applications. The valve performs reliably across various conditions, easily managing flow from near-zero to full capacity; making it ideal for fire protection systems. Engineered to meet stringent fire protection standards, the S100 68 series guarantees dependable operation, when every second counts.

Standout Features

Suitable for large selection of fire protection applications

Enables precise, efficient operation at minimal pressure

Engineered for high pressure & flow, with low pressure losses

Designed for easy installation, operation & long-term reliability

Used in hazardous, flammable & explosion-classified areas

Tested & certified: UL, Lloyd’s, ABS, Fire tested & seat leakage class

Standout Features

Suitable for large selection of fire protection applications

Enables precise, efficient operation at minimal pressure

Engineered for high pressure & flow, with low pressure losses

Designed for easy installation, operation & long-term reliability

Used in hazardous, flammable & explosion-classified areas

Tested & certified: UL, Lloyd’s, ABS, Fire tested & seat leakage class

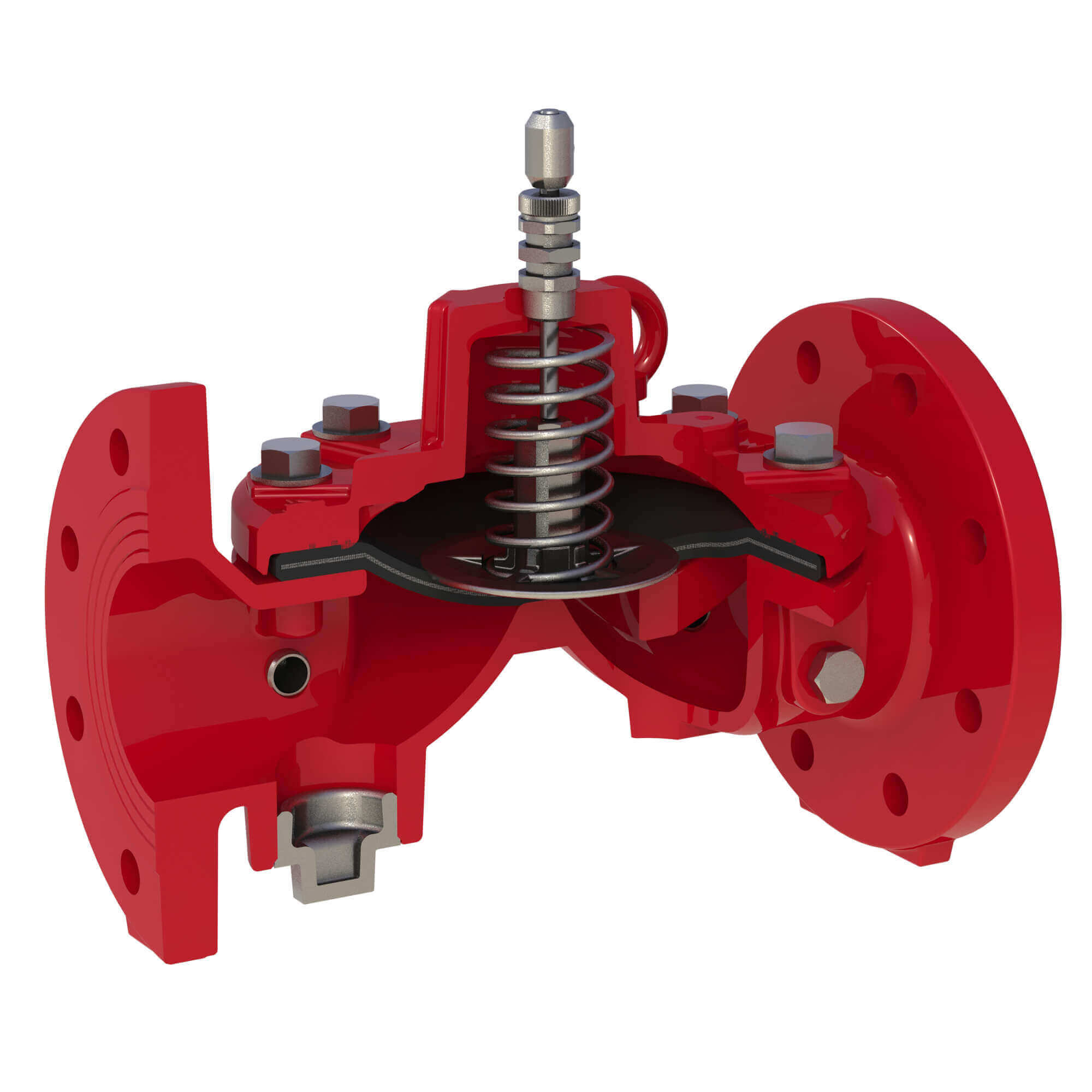

Features & Benefits

1

Position indicator

Clear view of valve position status; option for additional limit switch
2

Simple design

3 main parts, low maintenance costs, improved reliability
3

Preshaped, reinforced diaphragm design

Provides extremely reliable, long-lasting performance
4

Upstream drain port & 4 control ports

Allows installation flexibility
Certifications

Lloyd's Register Dertification

Downloads

Product Page (PDF)

EN

EN (USA)

BIM Models

Technical Specifications

Size Unit

Size range

DN50 - DN600 (2"- 24")

Pressure rating

PN16, PN25

Working temperature

0ᵒ – 85ᵒ C

End connection type

Flanged

ISO-PN16 & ISO-PN25

ASME/ANSI B16.42 & B16.5 Class 150# & 300#

Grooved

ASME/ANSI AWWA 606

Standard construction materials

Body and Cover

Ductile Iron ASTM A536 (standard)

Stainless Steel ASTM CF8M

Cast Steel ASTM A216 & A352 LCB

NAB ASTM B148 C-958000

Internal Parts

Stainless Steel

Diaphragm

Neoprene (standard)

NR

NBR

EPDM

Control Trim & Accessories

Brass / Bronze / Copper (standard)

Stainless Steel

Super Duplex

Monel

NAB

* Other optional materials available upon request

Control Functions

Deluge Valves
Pre-action Valves
Pressure Regulation
Flow Regulation
Level Control
On/Off
  • Deluge Valves
  • Pre-action Valves
  • Pressure Regulation
  • Flow Regulation
  • Level Control
  • On/Off
OCV 68 DE\HRV\PR-MR
Hydraulically Actuated, Anti-Columning, Pressure Reducing, Manual Reset Deluge Valve
OCV 68 DE\RCL\PR
Electrically Actuated, Pressure Reducing, Manual Reset Deluge Valve 3/2 Solenoid
OCV 68 DE\PORV\PR
Pneumatically Actuated, Pressure Reducing Deluge Valve
OCV 68 DE\PORV\PR-MR
Pneumatically Actuated, Pressure Reducing, Manual Reset Deluge Valve
OCV 68 DE\EL\PR
Electrically Actuated, Pressure Reducing, Remote Reset Deluge Valve 2/2 Solenoid
OCV 68 DE\HRV\PR-MR
Hydraulically Actuated, Anti-Columning, Pressure Reducing, Manual Reset Deluge Valve
