OCV Series S65

Durable, Robust , High-pressure Resistant Control Valve

OCV S65 series is an automatic, hydraulically actuated, diaphragm operated, rigid seal, globe and angle pattern control valve. Featuring a robust design, resistance to high working pressure, flexibility in structural materials and resistance to extreme working conditions / environments, makes it a suitable safety valve for applications such as deluge, pressure control, water / foam and seawater fire protection systems. S65 valves consist of three major components: body, bonnet and internal diaphragm assembly.

Standout Features

OCV Series S65 - High-pressure Resistant Control Valve | Aquestia

Heavy-duty valve body for high pressure applications

Used in hazardous, flammable & explosion-classified areas

Out-of-the-box fully assembled & tested valves

Epoxy & UV-protection coating as standard for exceptional durability

Enables precise, efficient operation at minimal pressure

Tested & certified: UL, FM, ABS, Fire tested & seat leakage class

Standout Features

OCV Series S65 - High-pressure Resistant Control Valve | Aquestia

Heavy-duty valve body for high pressure applications

Used in hazardous, flammable & explosion-classified areas

Out-of-the-box fully assembled & tested valves

Epoxy & UV-protection coating as standard for exceptional durability

Enables precise, efficient operation at minimal pressure

Tested & certified: UL, FM, ABS, Fire tested & seat leakage class

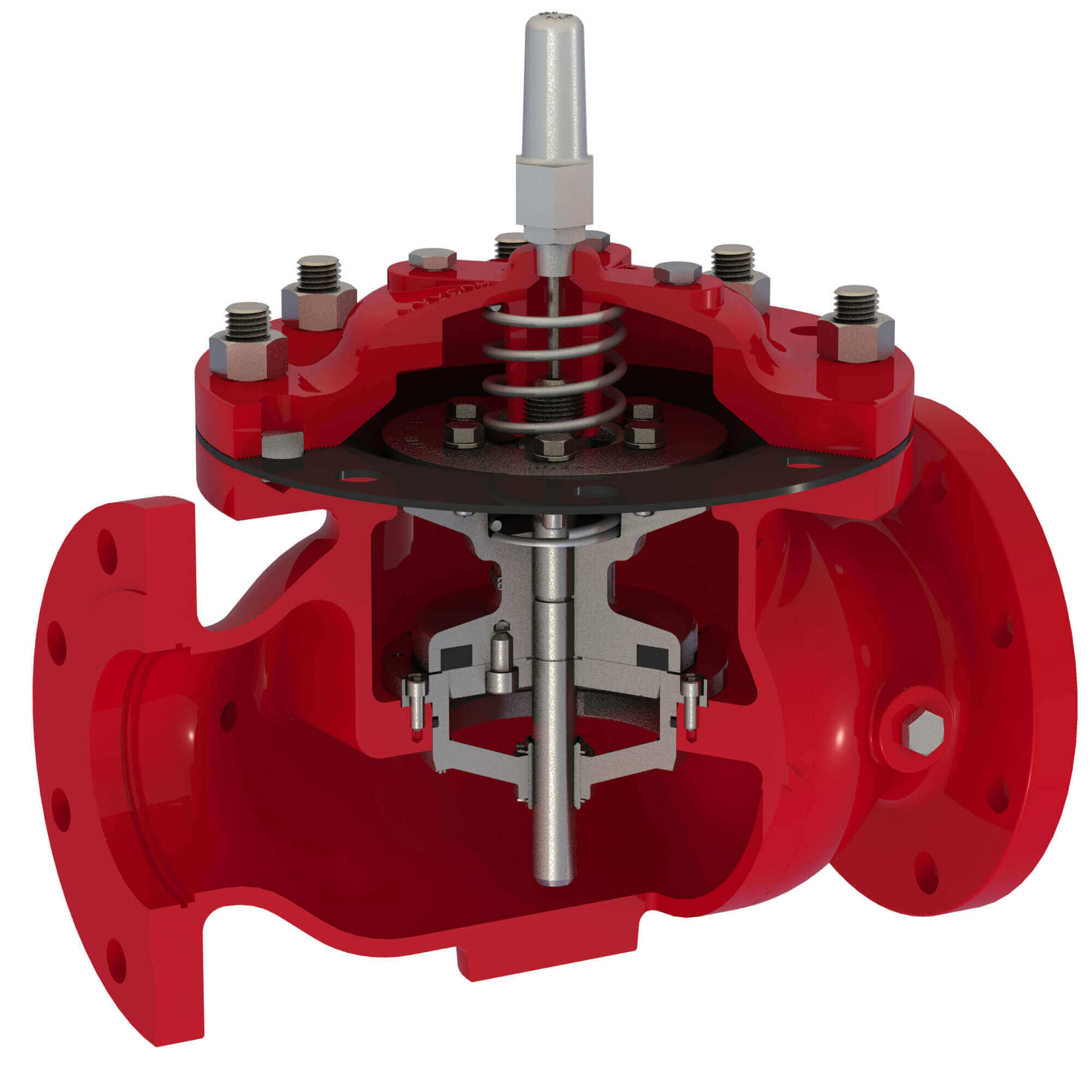

Features & Benefits

1

Position indicator

Clear view of valve position status
2

Drilled drain port (optional)

For installation flexibility & compatibility with various Fire Protection applications
3

Diaphragm assembly: guided top & bottom

Ensures stability, minimizing vibrations and maintaining reliable valve operation
4

Alignment pins, studs & nuts

Assures proper reassembly & easy maintenance
5

Heavy-duty valve body

For high pressure applications, up to 740 psi working pressure
Downloads

Product Page (PDF)

EN

EN (USA)

Technical Specifications

Size Unit

Size range

DN32 - DN600 (1¼"- 24")

Pressure rating

PN16, PN25, PN40, PN50

Working temperature

0ᵒ – 110ᵒ C

End connection type

Flanged

SO-PN16 & ISO-PN25

ASME/ANSI B16.42 & B16.5 Class 150# & 300#

Grooved

ASME/ANSI AWWA 606

Standard construction materials

Body and Cover

Ductile Iron ASTM A536 (standard)

Stainless Steel ASTM CF8M

Cast Steel ASTM A216 & A352 LCB

NAB ASTM B148 C-958000

Internal Parts

Stainless Steel

Diaphragm

EPDM (standard)

Neoprene

NR

NBR

Control Trim & Accessories

Brass / Bronze / Copper (standard)

Stainless Steel

Super Duplex

Monel

NAB

* Other optional materials available upon request

Control Functions

Deluge Valves
Pre-action Valves
Pressure Regulation
Flow Regulation
Level Control
On/Off
  • Deluge Valves
  • Pre-action Valves
  • Pressure Regulation
  • Flow Regulation
  • Level Control
  • On/Off
OCV 115-4DV
Electrically Actuated Deluge Valve
OCV 116FC
Pneumatically Actuated Deluge Valve
OCV 116-5MR
Pressure Reducing, Solenoid Shut-Off Deluge Valve
OCV 116-4FC
Electrically Actuated Deluge Valve
OCV 116-3FC
Electrically or Pneumatically Actuated Deluge Valve
OCV 115-1DV
Electrically Actuated Deluge Valve
