Electrically controlled deluge valve, actuated by the pipeline pressure. The valve is closed in its normal, set position and opens when a 3w solenoid valve is energized. The valve must be manually reset following automatic activation using the ball valve manual reset lever. When tripped, the valve regulates to a steady, preset downstream pressure, regardless of upstream pressure or flow rate fluctuations. An emergency manual release valve is fitted as standard.
Size Unit
Size range
Fire Protection certifications
ABS Type Approval
DN80 – DN250 (3″ – 10″)
Pressure rating
Working temperature
End connection type
Flanged
ANSI B16.42 & B16.5 Class 150# & 300#
Materials of construction
Body and Cover
Ductile Iron
Stainless Steel
Cast Steel
Duplex Stainless Steel
NAB
Control Trim & Accessories
3-way Auxiliary Pilot: Bronze (std); Stainless, Duplex Stainless Steel
Solenoid Valve: Stainless Steel
Tubings/Fittings: Copper, Bronze/Brass
Optional Fittings: Stainless Steel, Monel
* Other optional materials available upon request

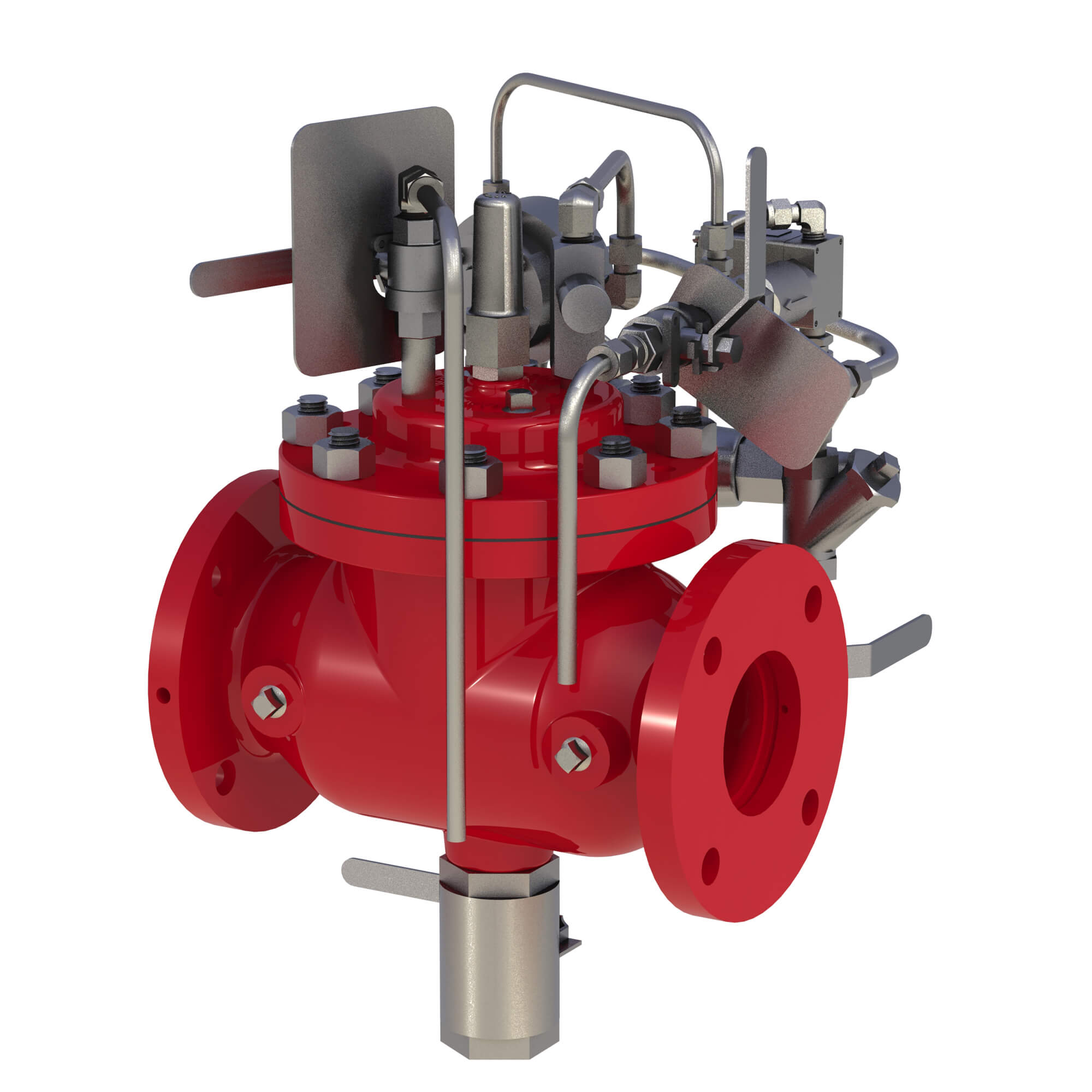

OCV 116-5MR
OCV 116-5MR
