Electrically controlled deluge valve, actuated by the pipeline pressure. The valve is closed in its normal, set position and opens when a 3-way solenoid valve is energized. It closes drip-tight when
the solenoid valve is de-energized. An emergency manual release valve is fitted as standard.
Size Unit
Size range
Fire Protection certifications
UL Listed
DN80 – DN250 (3″ – 10″)
Pressure rating
Working temperature
End connection type
Flanged
ANSI B16.42 & B16.5 Class 150# & 300#
Materials of construction
Body and Cover
Ductile Iron
Stainless Steel
Cast Steel
Duplex Stainless Steel
NAB
Control Trim & Accessories
3-way Auxiliary Pilot: Bronze (std); Stainless, Duplex Stainless Steel
Solenoid Valve: Stainless Steel
Tubings/Fittings: Copper, Bronze/Brass
Optional Fittings: Stainless Steel, Monel
* Other optional materials available upon request

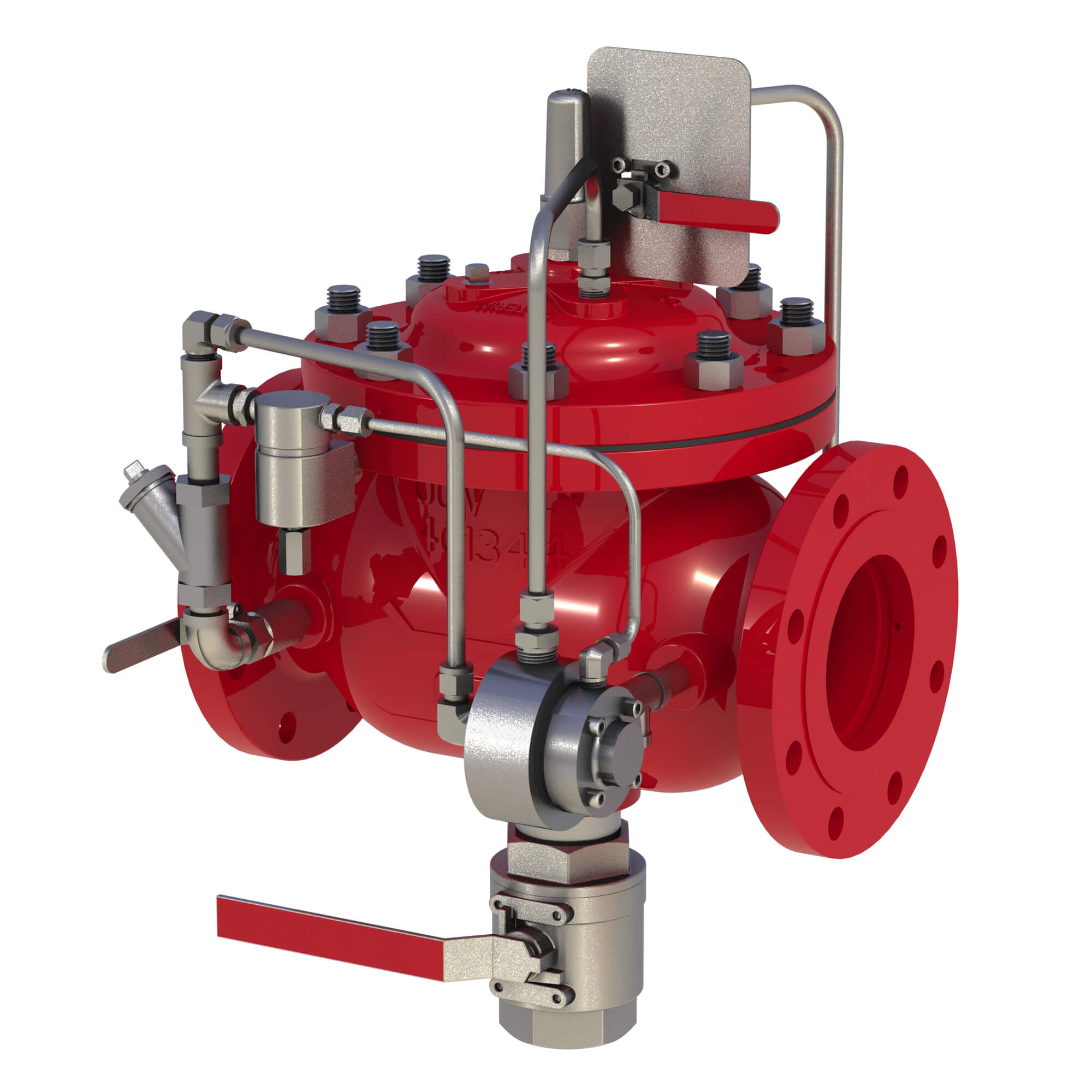

OCV 116-4FC
OCV 116-4FC
