Electrically or pneumatically actuated, pilot controlled deluge valve, actuated by the pipeline pressure. The valve is closed in its normal, set position and opens when the pneumatic supply pressure is removed, or by an electric command. An emergency manual release valve is fitted as standard.
Size Unit
Size range
Fire Protection certifications
UL Listed
DN80 – DN250 (3″ – 10″)
Pressure rating
Working temperature
End connection type
Flanged
ANSI B16.42 & B16.5 Class 150# & 300#
Materials of construction
Body and Cover
Ductile Iron
Stainless Steel
Cast Steel
Duplex Stainless Steel
NAB
Control Trim & Accessories
Pneumatic Pilot: Stainless Steel
Solenoid Valve: Stainless Steel
Tubings/Fittings: Copper, Bronze/Brass
Optional Fittings: Stainless Steel, Monel
* Other optional materials available upon request

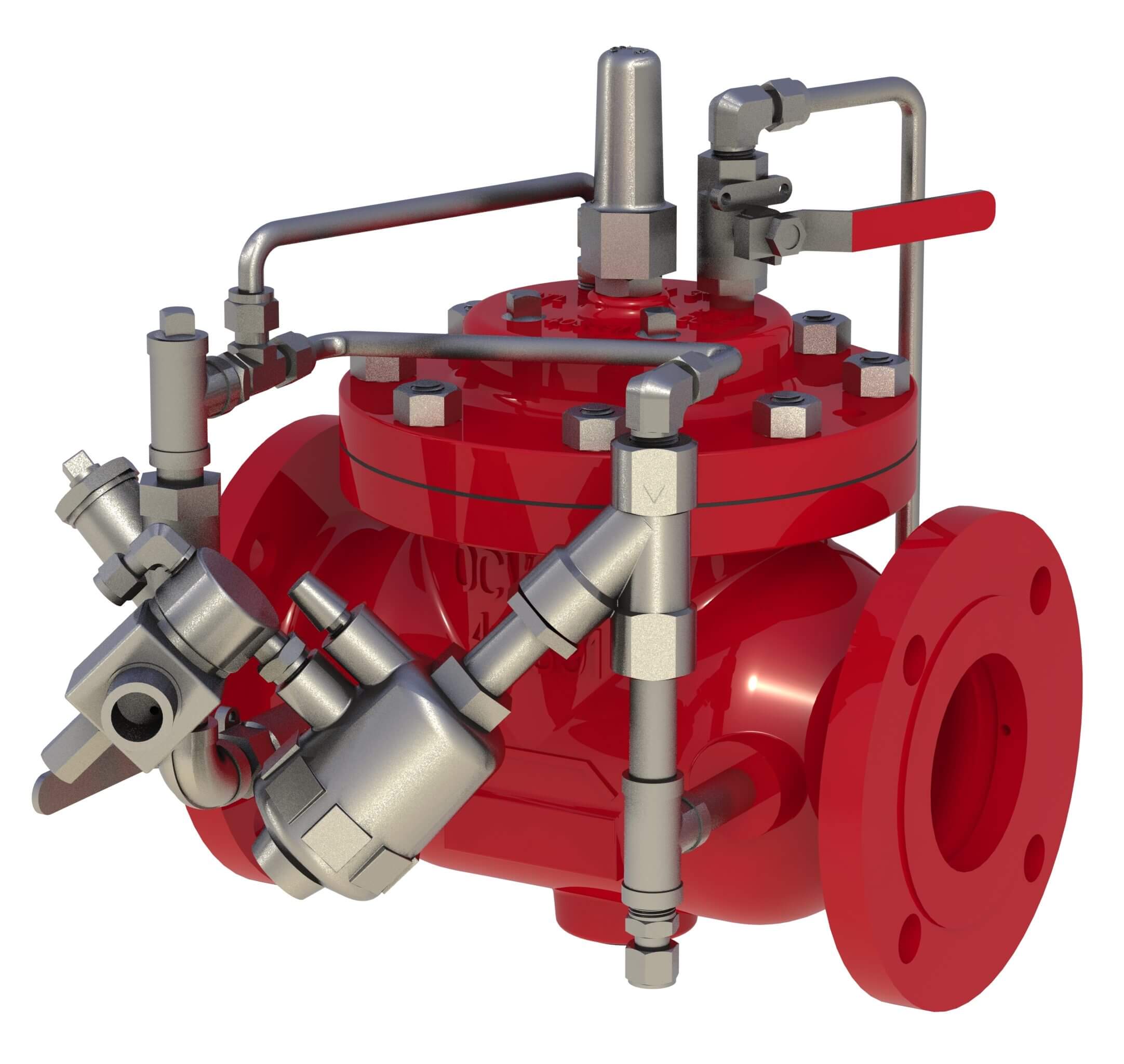

OCV 116-3FC
OCV 116-3FC
