An automatic, pilot controlled, pressure relief valve actuated by the pipeline pressure. The valve modulates to maintain a steady, predetermined pressure in the network. Should the upstream pressure exceed the required set point, the valve opens, releasing the excessive pressure. When the pressure falls below the set value, the valve closes drip tight.
Size Unit
Size range
Fire Protection certifications
UL Listed
DN80 – DN200 (3″ – 8″)
FM Approved
DN80 – DN200 (3″ – 8″)
Pressure rating
Working temperature
End connection type
Flanged
ANSI B16.42 & B16.5 Class 150# & 300#
Materials of construction
Body and Cover
Ductile Iron
Stainless Steel
Cast Steel
NAB
Control Trim & Accessories
Brass/Bronze – Copper
Monel
Stainless Steel
* Other optional materials available upon request

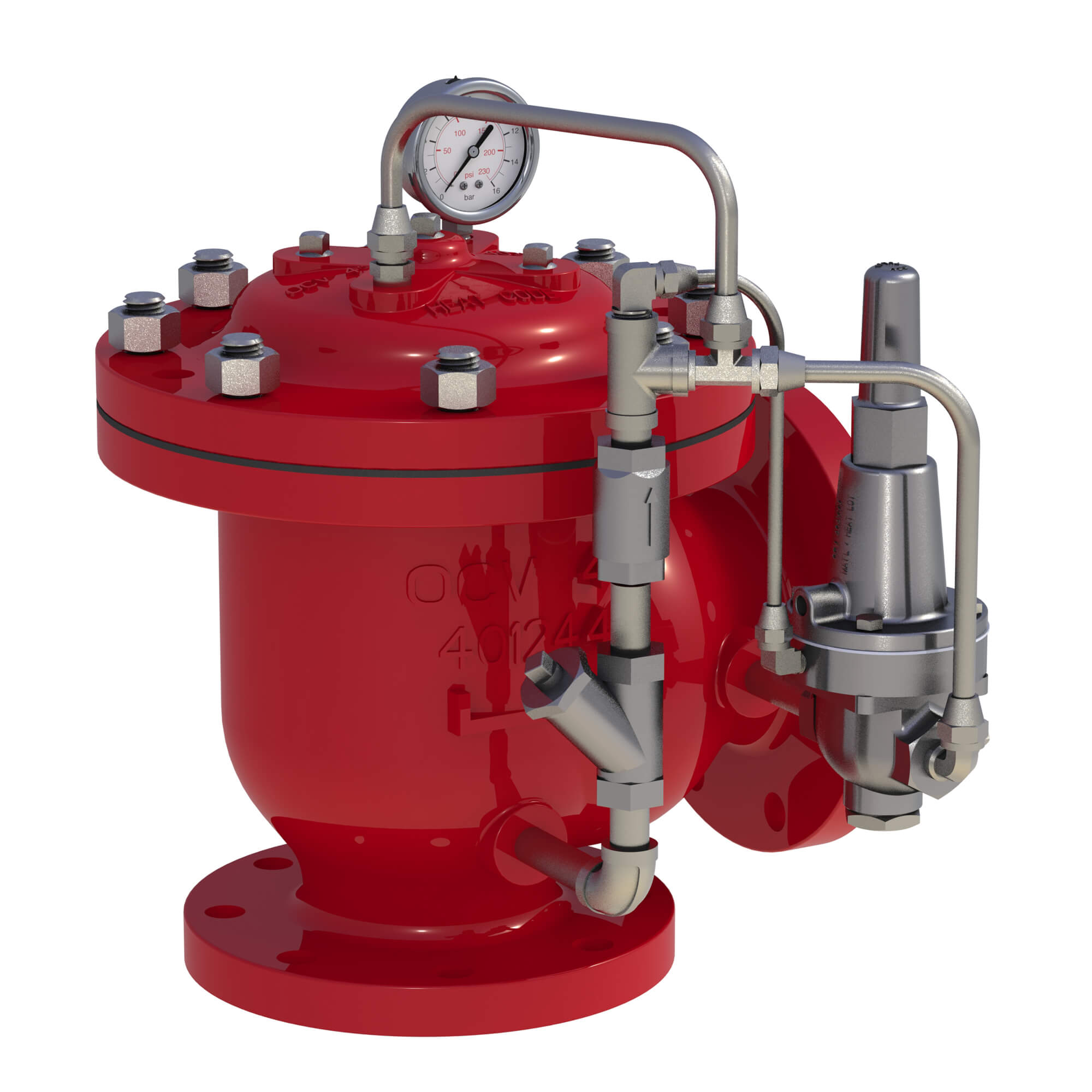

OCV 108FC/108FCA
OCV 108FC/108FCA
