DOROT S100 FR

Weir-type Diaphragm, Flow Control Globe Valve

DOROT S100 FR, is a Weir-type Diaphragm, Flow Control Globe Valve, activated by the pressure of the pipeline. The valve limits the flow rate in the system to a preset value, regardless of upstream pressure variations. The valve fully opens when flow rate drops below a preset point.

Go to S100 Basic Valve

Certifications

EAC Safety Certificate

<img width="213" height="141" src="https://www.aquestia.com/wp-content/uploads/2024/09/SII.jpg" alt="">

SII- Series 300 and Series 100 - 1644 -Standard-Mark - QUALITY-167521-116262- (English)

<img width="213" height="141" src="https://www.aquestia.com/wp-content/uploads/2024/09/SII.jpg" alt="">

SII- Series 300 and Series 100 - 1644 -Standard-Mark - QUALITY-167521-116262- (Hebrew)

Downloads

IOM (PDF)

BIM Models

DOROT S100 Angle

DOROT S100 Straight-Angle

DOROT S100 Straight

Technical Specifications

Size Unit

Size range

DN20 - DN600 (¾"- 24")

Pressure rating

PN16, PN25

Working temperature

0ᵒ – 80ᵒ C

End connection type

Threaded, Flanged, Grooved

Standard construction materials

Body and Cover

Ductile Iron

Internal Parts

Stainless Steel and Polymer

Seals + Diaphragm

EPDM

* Other optional materials available upon request

DOROT S100 FR

<img width="2000" height="2000" src="https://www.aquestia.com/wp-content/uploads/2024/12/WW-100-4-IS16RF-FR2W-SS-EB_left.jpg" alt="DOROT S100 FR">

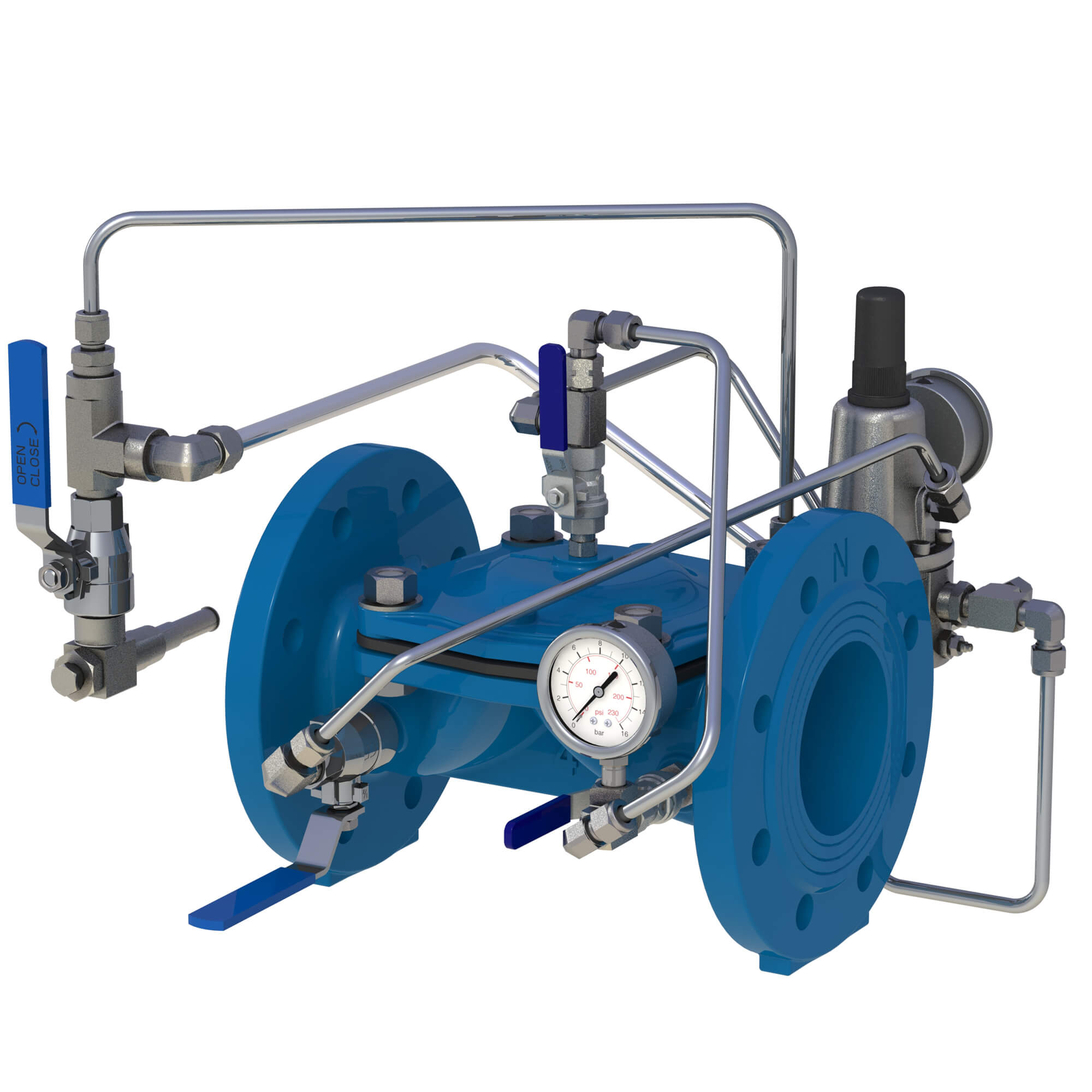

DOROT S100 FR

<img width="2000" height="2000" src="https://www.aquestia.com/wp-content/uploads/2024/12/WW-100-4-IS16RF-FR2W-SS-EB_right.jpg" alt="">

DOROT S100 FR

DOROT S100 FR

<img width="2000" height="2000" src="https://www.aquestia.com/wp-content/uploads/2024/12/WW-100-4-IS16RF-FR2W-SS-EB_left.jpg" alt="DOROT S100 FR">

<img width="2000" height="2000" src="https://www.aquestia.com/wp-content/uploads/2024/12/WW-100-4-IS16RF-FR2W-SS-EB_right.jpg" alt="">

Features & Benefits

Wide range of sizes and patterns, up to 24" and up to 25 bar pressure

Allows compatibility across different systems for more versatile installation

Flexible reinforced diaphragm design

Significantly reduces maintenance while enhancing reliability; to ensure exceptionally low losses at high flow rates

Regulates at a stable mode, down to near-zero flow

Ensures consistent performance without the need for specialized low-flow adjustments

Self-cleaning inline filter

Cuts down on frequency of inspections and maintenance, significantly reducing labor costs

Safety air release

Easily removes air from the control valve chamber, to ensure stability and optimal system performance

Drinking water approval – WRAS

Certified for use in potable water systems, ensuring compliance with safety standards
