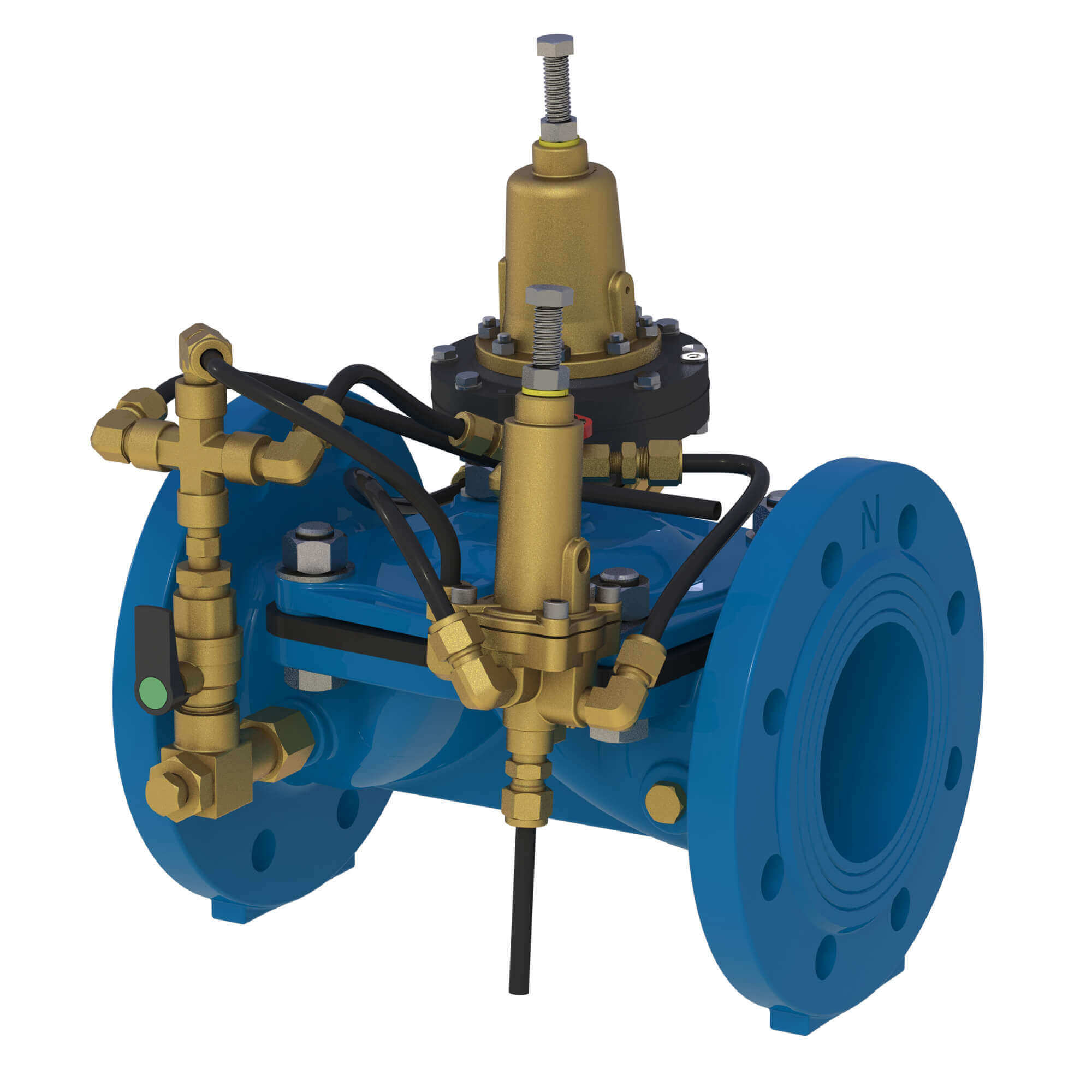

DOROT S100 AL (3W), is a Weir-type Diaphragm, 3-way Altitude Pilot Level Control, Globe Valve, activated by the pressure of the pipeline. The main valve is controlled by a highly sensitive pilot, located outside the tank. The pilot opens or closes the valve in response to static water pressure. The pilot allows for differential adjustments between maximum and minimum water levels.
BIM Models
DOROT S100 Angle
DOROT S100 Straight-Angle
DOROT S100 Straight
Size Unit
Size range
Pressure rating
Working temperature
End connection type
Threaded, Flanged, Grooved
Standard construction materials
Body and Cover
Cast Iron
Internal Parts
Stainless Steel and Polymer
Seals + Diaphragm
Natural Rubber
* Other optional materials available upon request
DOROT S100 AL (3W)
DOROT S100 AL (3W)
