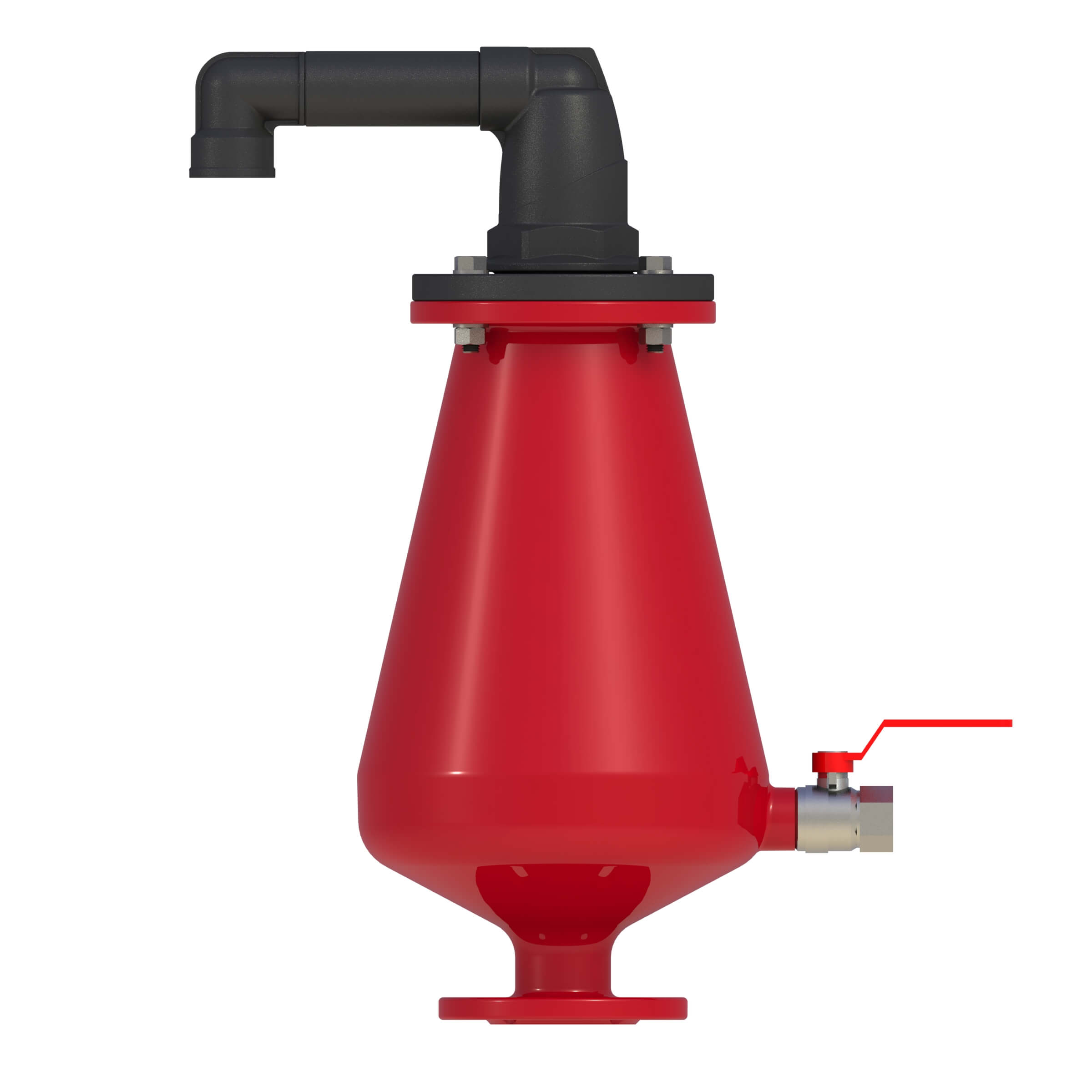

DOROT DAV-W-KA

Reduced Bore, Combination Air Valve for Wastewater

DOROT DAV-W-KA is a reduced bore, Combination Air Valve installed on wastewater transmission systems. The Air Valve is designed to improve hydraulic operation by protecting the pipeline, increasing pipeline efficiency, and reducing energy requirements. The unique body shape of the valve, enables a continuous air gap that separates the wastewater from the sealing mechanism and helps to avoid deposits or blockage.

Downloads

Product Page (PDF)

Technical Specifications

Size Unit

Size range

DN50 - DN200 (2" - 8")

Pressure rating

PN16

Working pressure range

0.1 - 16 bar

Working temperature

Maximum working temperature:

60° C

Maximum intermittent temperature:

90° C

Available construction materials

Reinforced Nylon, Polypropylene, Stainless Steel, Cast Steel

End connection type

Threaded male BSPT/NPT

Flanged ends to meet various requested standards

Optional add-on components

One-way Out – allows for air discharge only, prevents air intake
One-way In – allows air intake only, not allowing air discharge
Non-slam – discharge-throttling attachment, allows full air intake, throttles air discharge.

DOROT DAV-W-KA

DOROT DAV-W-KA

Features & Benefits

Conical body / funnel-shaped lower body

Maximum air gap, minimum body length
Residue matter falls back into the system pipeline

Continuous air gap

Separates the liquid from the sealing mechanism

Aerodynamic float assembly

High velocity air will not close the valve under rapid filling operation
Reduces accumulation of fat or grease buildup
Free movement will not unseal the sealing mechanism

Sealing assembly

Provides smooth, reliable opening/closing, and leak-free sealing over a wide range of pressures

Cushioned spring connection

Cushioned joint allows continuous air discharge under vibration conditions related to turbulence from pump start and shut-off, or from flow fluctuations.
