Irrigation

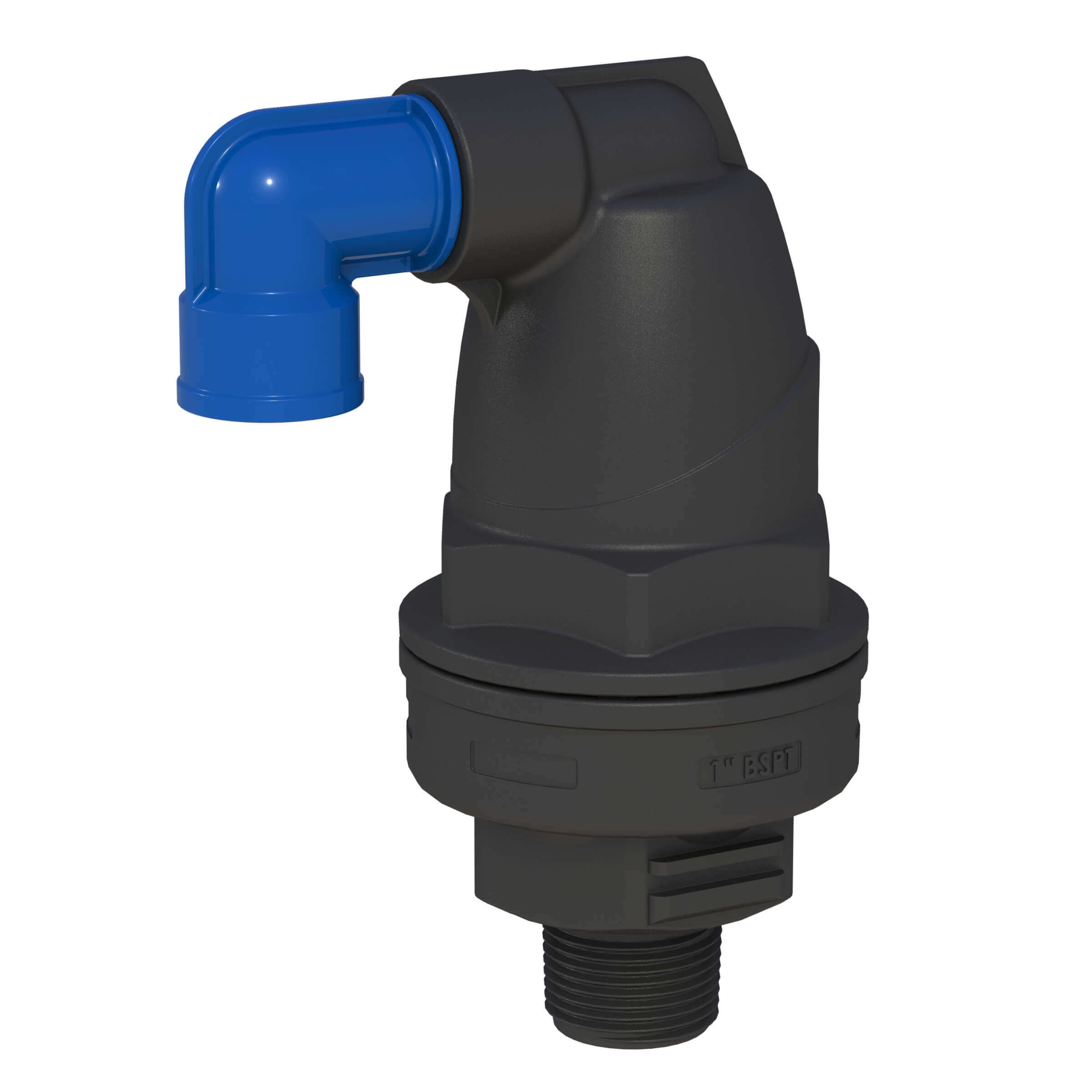

DOROT DAV-P-K

Reduced Bore, Air & Vacuum Air Valve Series

DOROT DAV-P-K is a polymeric reduced bore Air & Vacuum Air Valve Series. Valve operation includes venting air from a filling pipeline and also vacuum breaking (air intake) of a draining pipeline, to optimize pipeline hydraulic efficiency and flow.

Downloads

Product Page (PDF)

EN

ES

Technical Specifications

Size Unit

Size range

DN15 - DN50 (1/2" - 2")

Pressure rating

PN16

Working pressure range

0.1 - 16 bar

Working temperature

Maximum working temperature:

60° C

Maximum intermittent temperature:

80° C

Available construction materials

Reinforced Nylon, Polypropylene

End connection type

Threaded male BSPT/NPT

Flanged ends to meet various requested standards

DOROT DAV-P-K

DOROT DAV-P-K

DOROT DAV-P-K

Features & Benefits

Construction materials
  • UV resistant, non-corrosive and durable
All parts UV protected
  • Durable and long-lasting in outdoor environments
Lightweight, small dimensions
  • Easily installed, even on plastic piping systems, simple to maintain
Screen protected outlet
  • Prevents intrusion of insects and debris
