Irrigation

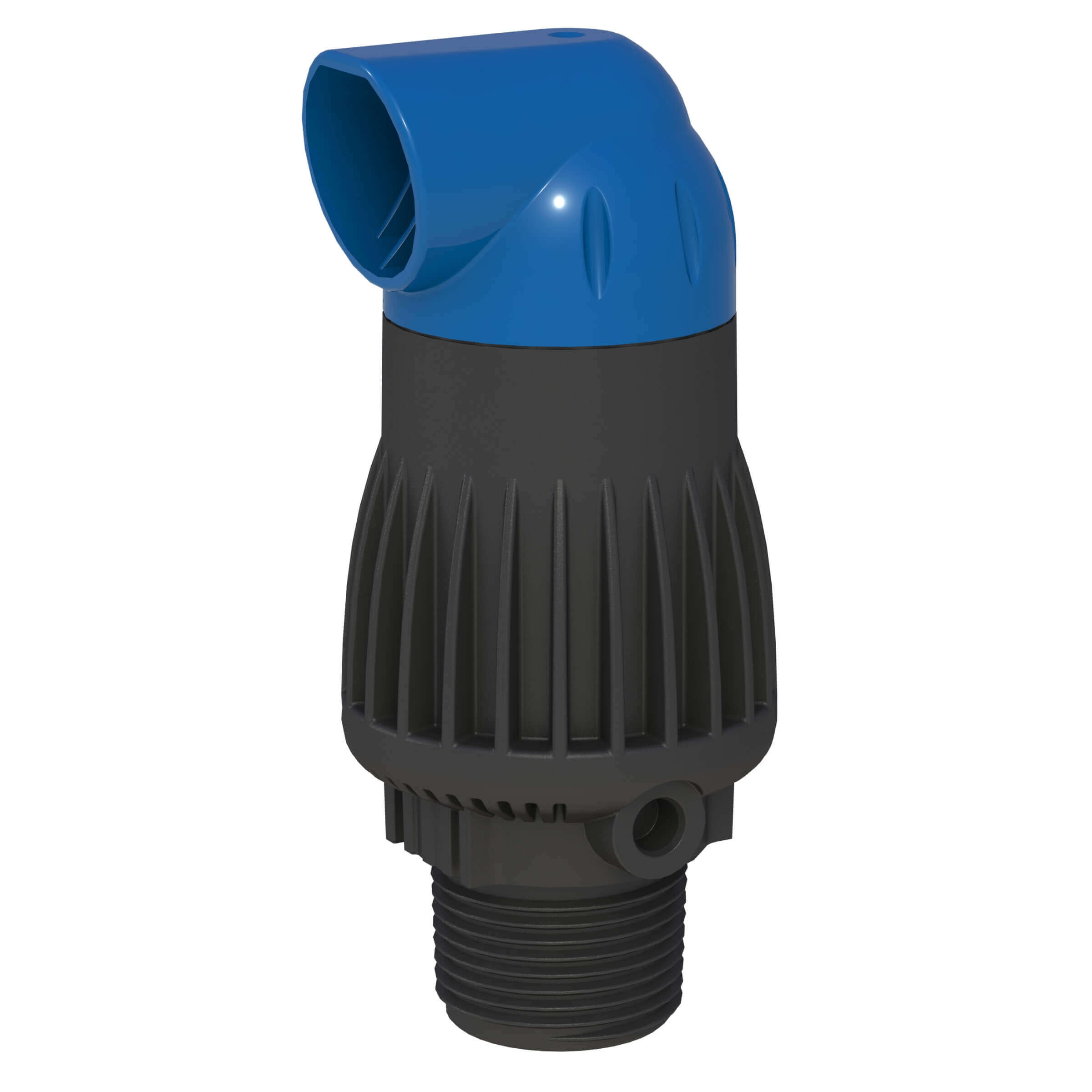

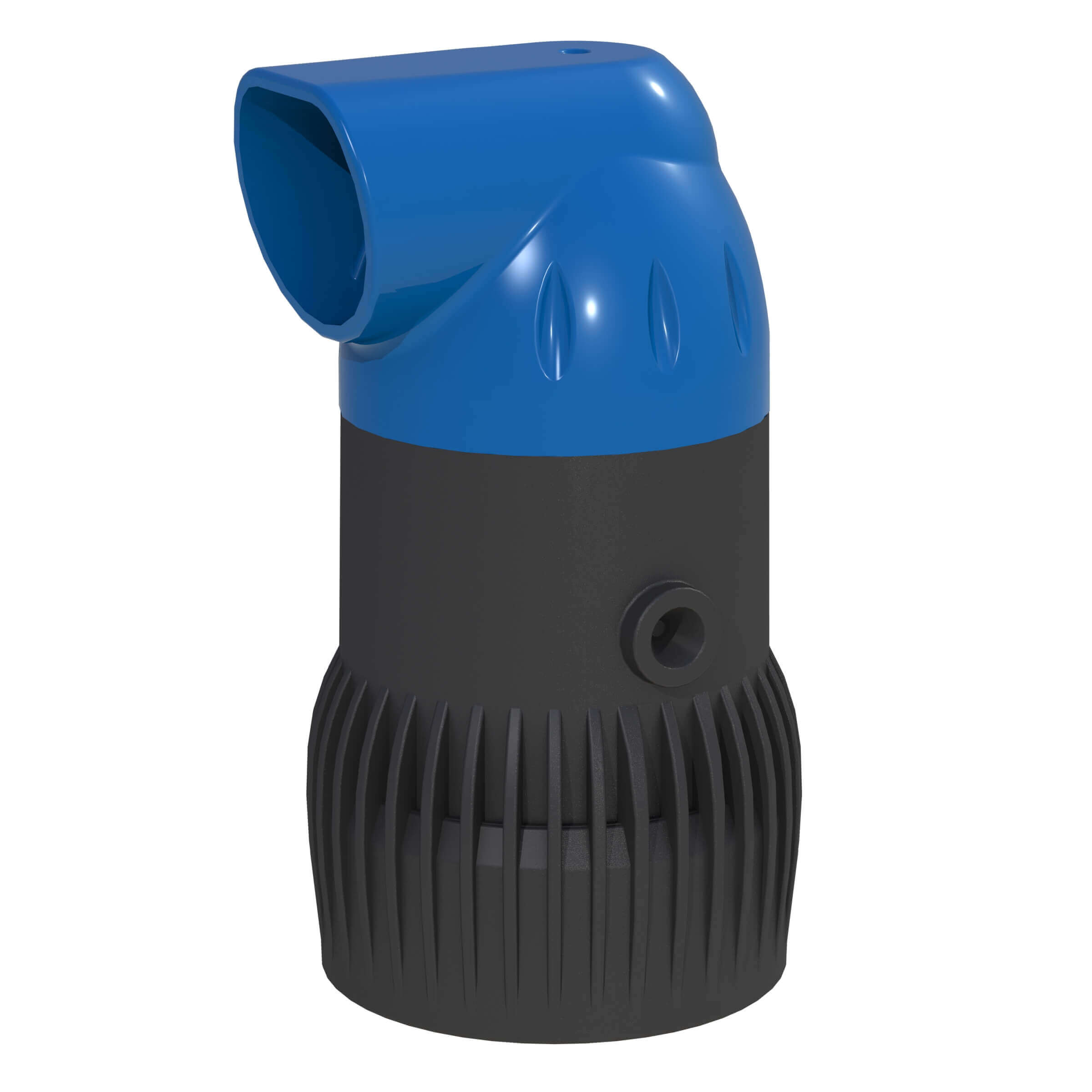

DOROT DAV-LP-K

Air & Vacuum Air Valve

DOROT DAV-LP-K is a lightweight Air & Vacuum Air Valve. Valve operation includes venting air from a filling pipeline and also vacuum breaking (air intake) of a draining pipeline, to optimize pipeline hydraulic efficiency and flow.

Downloads

Product Page (PDF)

EN

ES

Technical Specifications

Size Unit

Size range

DN20 - DN50 (3/4" - 2")

Pressure rating

PN10

Working pressure range

0.1 - 10 bar

Working temperature

Maximum working temperature:

60° C

Maximum intermittent temperature:

90° C

Available construction materials

Reinforced Nylon

End connection type

Threaded male BSPT/NPT – 3/4”, 1”

Threaded female BSPT/NPT – 2”

DOROT DAV-LP-K

DOROT DAV-LP-K

DOROT DAV-LP-K

DOROT DAV-LP-K

Features & Benefits

Construction materials
  • UV resistant, non-corrosive and durable
All parts UV protected
  • Durable and long-lasting in outdoor environments
Lightweight, small dimensions
  • Easily installed, even on plastic piping systems, simple to maintain
Screen protected outlet
  • Prevents intrusion of insects and debris
