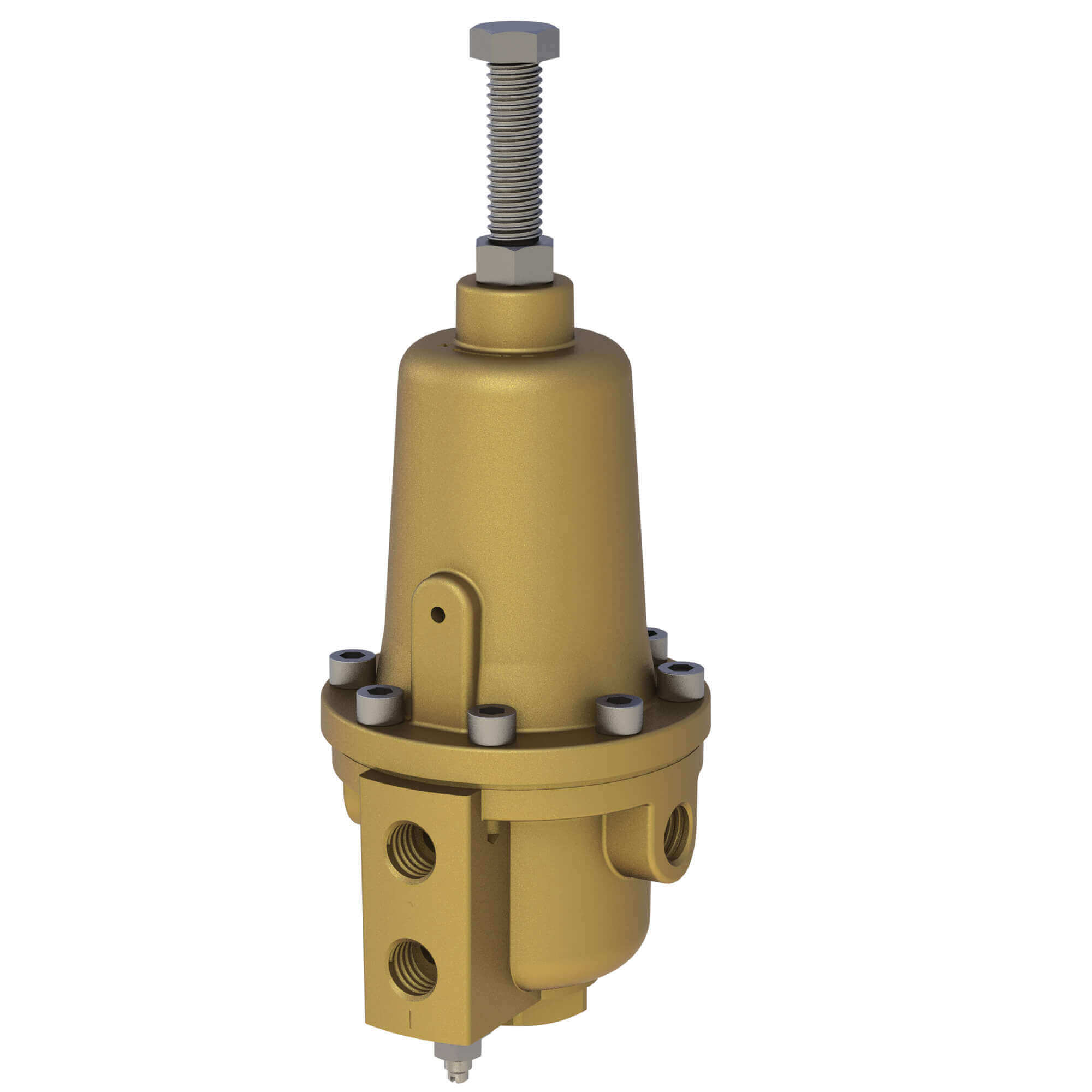

DOROT CXPR, is a 2-way, Diaphragm-actuated, Spring-loaded, Pressure Reducing Pilot Valve, designed to control hydraulic valves. The pilot modulates to keep a steady, preset downstream pressure.
Operation principle
As downstream pressure falls below the preset value, the pilot valve opens a full passage between "IN" and "OUT" ports. This allows the main valve to open by venting the control chamber pressure to the downstream. As downstream pressure rises above the preset value, the pilot valve throttles the internal passage, restricting flow out from the main valve control chamber; causing it to either maintain position or close, if necessary.
Product Page (PDF)
Size Unit
Pressure rating
Pressure adjustment range
Max. working temperature
Port connections
Standard construction materials
Body and Bonnet
Brass
Elastomers
NBR
Internal Parts
Stainless Steel
Spring
Stainless Steel
* Other optional materials available upon request
