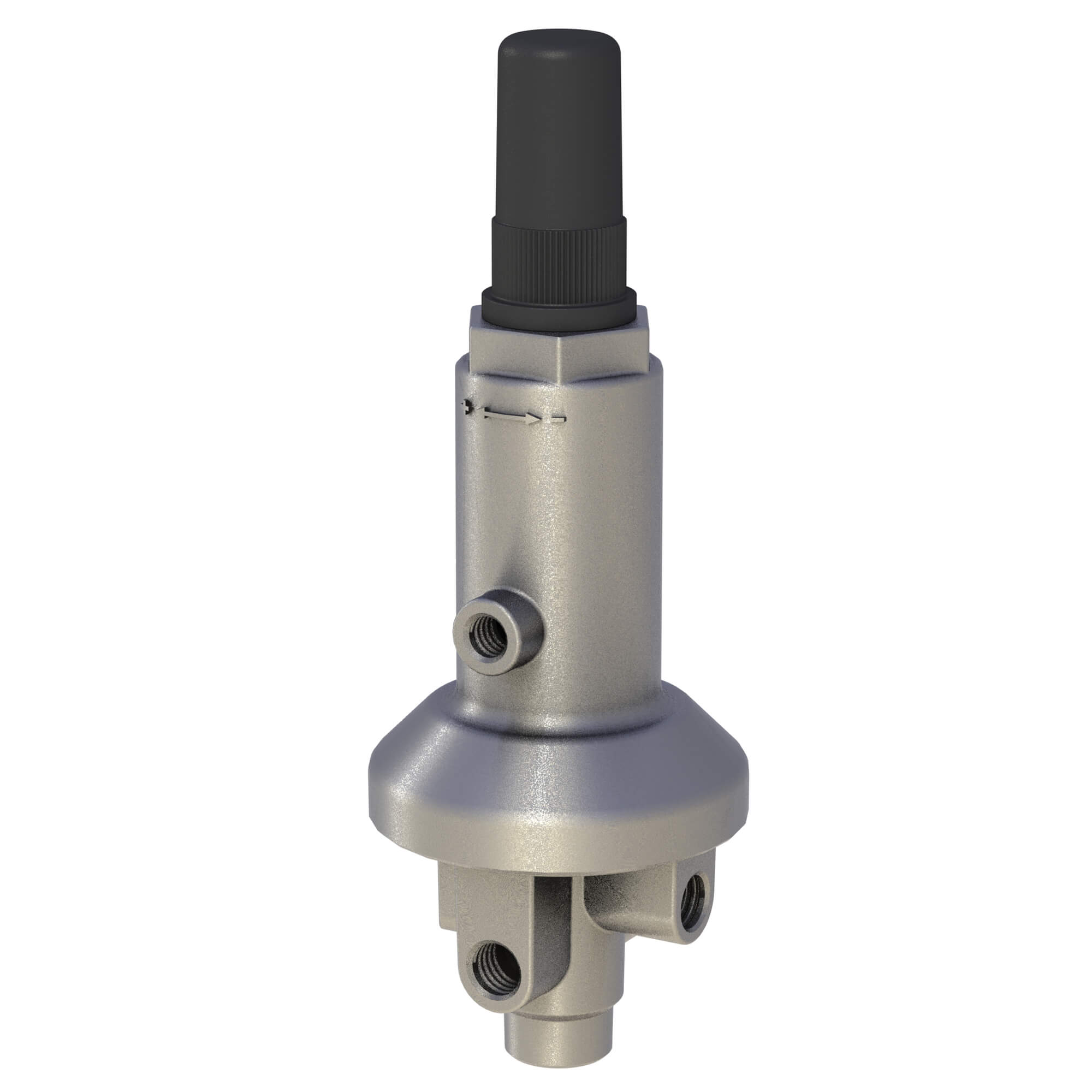

DOROT 76-200, is a Diaphragm-actuated, 3-way Spring-loaded, Multipurpose Metal Pilot Valve, designed for control of hydraulic valves. The pilot valve operates as a selector between the common port and the two other ports.
Operation principle
The pilot will vent, pressurize or lock the hydraulic valve chamber, as a factor of the relation between the regulated pressure and the adjusted preset value. The 76-200 pilot valve can be implemented for a wide range of hydraulic control functions.
Product Page (PDF)
Size Unit
Pressure rating
Pressure adjustment range
Max. working temperature
Port connections
Standard construction materials
Body and Bonnet
Stainless Steel
Elastomers
NBR
Internal Parts
Stainless Steel
Spring
Stainless Steel
* Other optional materials available upon request
