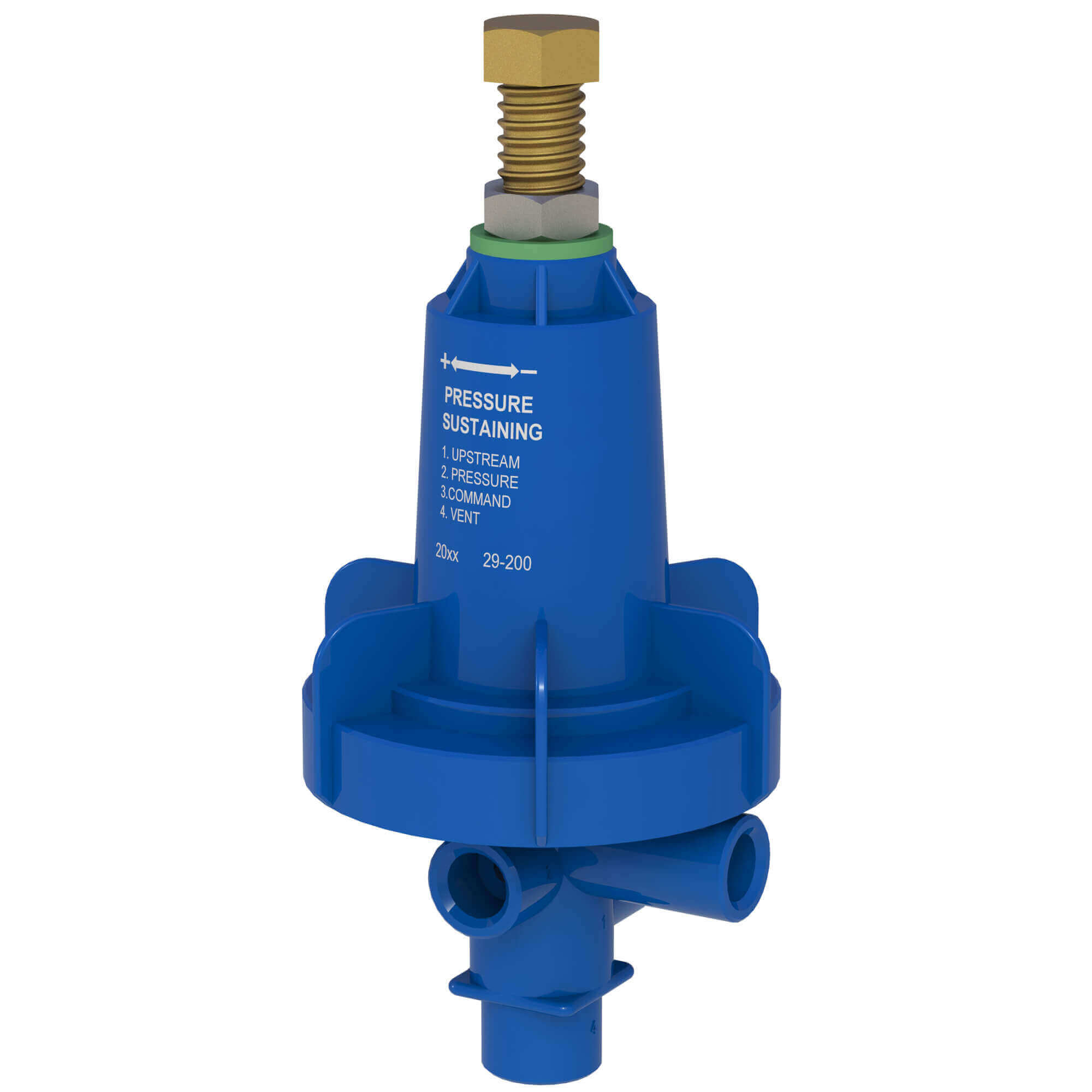

DOROT 29-200, is a Diaphragm-actuated, Multipurpose, 3-way Spring-loaded, Polymeric Pilot Valve, designed for control of pressure-regulating hydraulic valves.
Operation principle
The pilot valve operates as a selector between the common port and the two other ports. The pilot valve will vent, pressurize or lock the hydraulic valve chamber, as a factor of the relation between the regulated pressure and the adjusted preset value. The 29-200 pilot valve can be implemented for a wide range of hydraulic control functions.
Product Page (PDF)
Size Unit
Pressure rating
Pressure adjustment range
Max. working temperature
Port connections
Standard construction materials
Body and Bonnet
GRP
Elastomers
NBR
Internal Parts
C.Brass + PTFE
Spring
Stainless Steel
* Other optional materials available upon request
