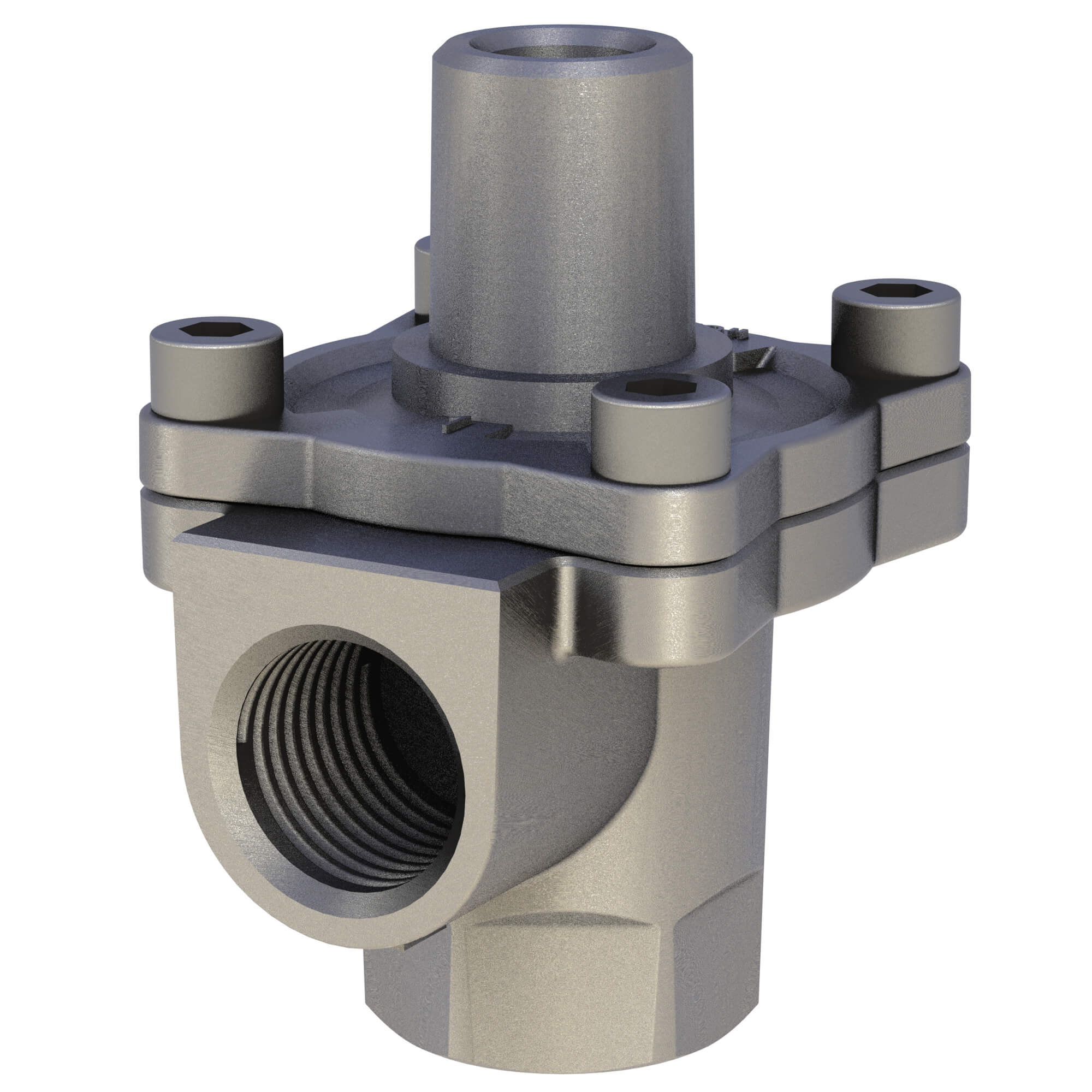

DOROT 28-200, is a 2-way, Hydraulically-operated, Diaphragm-actuated Normally Open Relay Valve, designed to meet the requirements of hydraulic valve control functions; particularly when a quick reaction is required.
Operation principle
The Hydraulic Accelerator body contains one seat, a fully supported frictionless diaphragm and a guide shaft. When a pressure command is applied above the diaphragm, the disc forms a drip-tight seal with the valve seat.
Product Page (PDF)
Size Unit
Pressure rating
Pressure adjustment range
Max. working temperature
Port connections
Standard construction materials
Body and Bonnet
Stainless
Elastomers
NBR
Internal Parts
Stainless Steel
Spring
Stainless Steel
* Other optional materials available upon request
