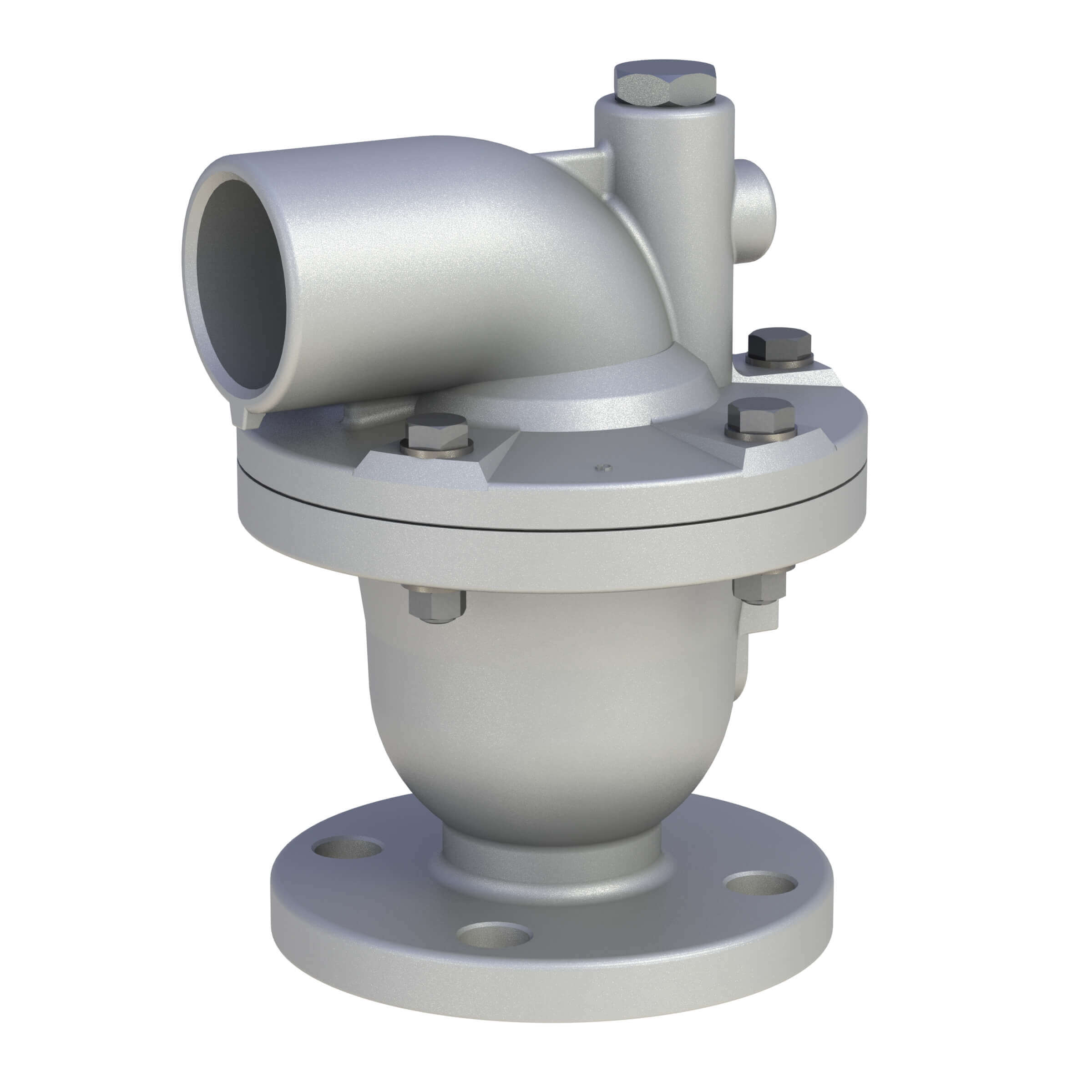

A.R.I. K-060 is a full-bore Air & Vacuum Air Valve Series. Valve operation includes venting air from a filling pipeline and also vacuum breaking (air intake) of a draining pipeline, to optimize pipeline hydraulic efficiency and flow.
Applicable for: Desalination & Seawater, Mines, Marine - Ballast Water, Oil & Gas, Food Industry, Power Plant Cooling, CBM, Hydro / Thermal Power.
Size Unit
Size range
Pressure rating
Working pressure range
A.R.I. K-060
0.05 - 16 barA.R.I. K-062
0.2 - 25 barA.R.I. K-065
0.2 - 40 barWorking temperature
Maximum working temperature:
60° CMaximum intermittent temperature:
90° CAvailable construction materials
Stainless Steel, Cast Steel, Super Duplex
End connection type
Threaded male BSPT/NPT (1”-2”)
Flanged ends to meet various requested standards (2”-10”)
Optional add-on components
One-way Out attachment, allows for air discharge only, prevents air intake.
One-way In attachment, allows air intake only, prevents air discharge.
