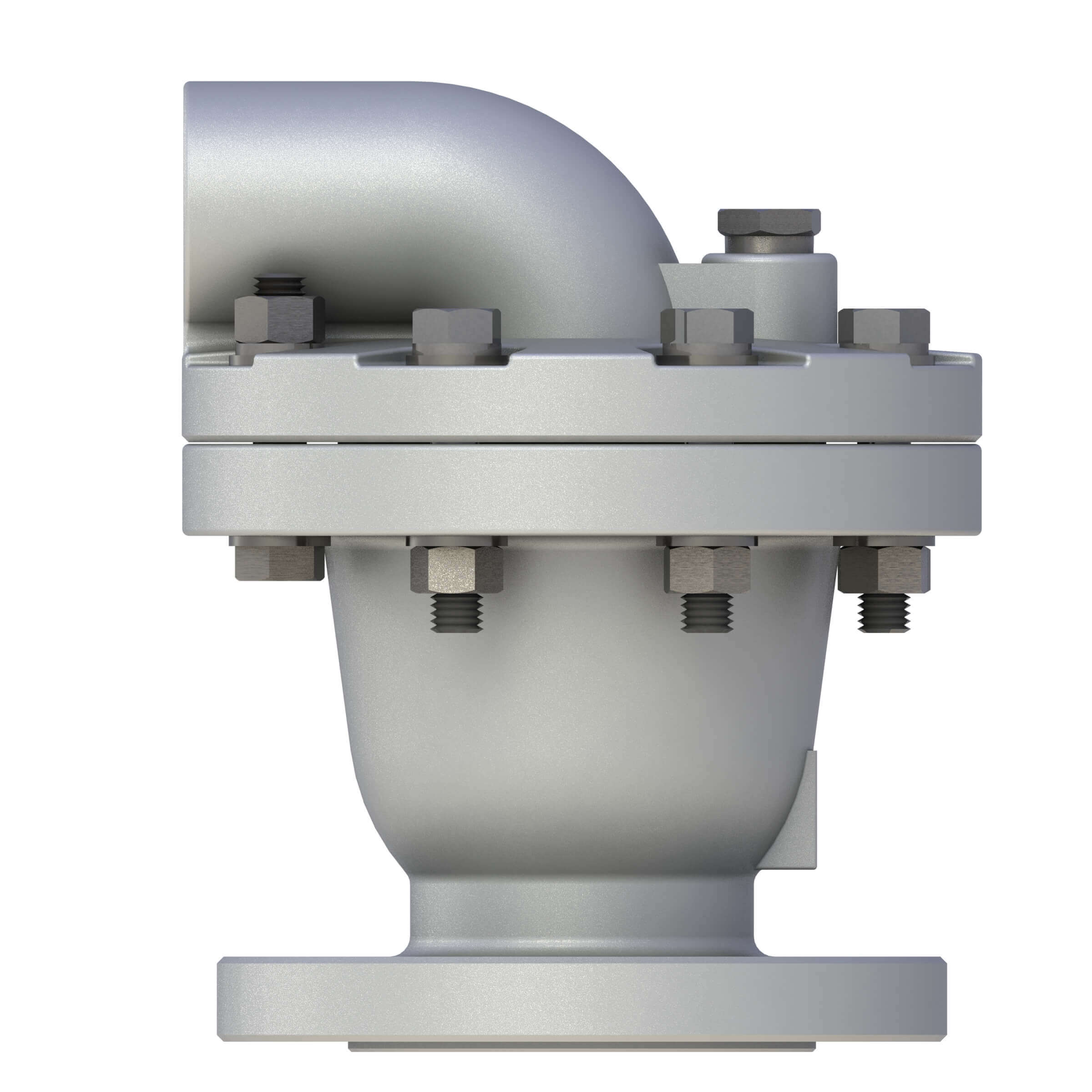

A.R.I. K-016, K100 are high pressure Air & Vacuum Air Valves. Valve operation includes venting air from a filling pipeline and also vacuum breaking (air intake) of a draining pipeline, to optimize pipeline hydraulic efficiency and flow.
Applicable for: Desalination & Seawater, Mines, Marine - Ballast Water, Oil & Gas, Food Industry, Power Plant Cooling, CBM, Hydro / Thermal Power.
Size Unit
Size range
Pressure rating
Working pressure range
A.R.I. K-016
0.2 - 64 barA.R.I. K-100
0.2 - 100 barWorking temperature
Maximum working temperature:
60° CMaximum intermittent temperature:
90° CAvailable construction materials
Stainless Steel, Cast Steel, Super Duplex
End connection type
Threaded male BSPT/NPT (1”-2”)
Flanged ends to meet various requested standard (2”-10”)
Optional add-on components
One-way Out attachment, allows for air discharge only, prevents air intake.
Non-slam discharge-throttling attachment, allows for free air intake, throttles air discharge.
A.R.I. K-016 K-100
A.R.I. K-016 K-100
